Calibrating the flow meter with the tank method

Mode of operation

With the tank method, a large quantity of water will be applied from the tank over a specific time.

The flow meter measures the pulses during this time.

After the application, you must enter the quantity of water that has been applied.

The computer calculates the number of pulses per litre.

		WARNING
	Spray liquid or spray liquid residues Danger of poisoning or chemical burning 1. Clean the spray liquid tank thoroughly prior to calibration. The field sprayer must be free of spray liquids or spray liquid residues. 2. Use only clear water during calibration. 3. Wear required protective equipment.

Procedure

þ: All sections are selected.

þ: Manual mode is activated (the icon appears in the "Spray data" area of the work screen).

þ: The tank is filled with clear water. For this, you need several hundred litres of clear water.

þ: You have the option of weighing the entire trailer or measuring the volume of water applied with another method.

þ: Pump is switched on.

1.: Ensure that all prerequisites have been fulfilled.

2.: Weigh the tank.

3.: Switch to the "CALIBRATION" screen:
> > >

⇨: The following screen appears:

4.: - Select the tank method.

⇨: The following screen appears:

5.: - Start application.

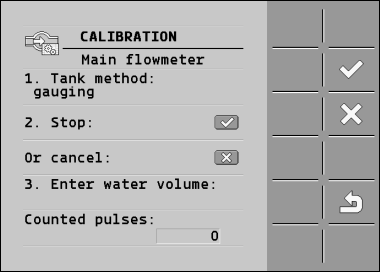

⇨: During application, the number of pulses will be counted on the "CALIBRATION – Main flow meter" screen.

6.: Apply a few hundred litres. Do not fully empty the tank. This prevents air bubbles from forming and distorting the results.

7.: - Stop application.

⇨: The application will be stopped.

⇨: No pulses are counted on the display.

8.: - Stop calibration.

9.: Weigh the tank.

10.: Enter the applied quantity in litres on the "Enter water volume" line.

11.: - Exit screen.

⇨: You have calibrated the flow meter with the tank method.
