Configuring the extremity nozzles


 JR3_Modus ändern

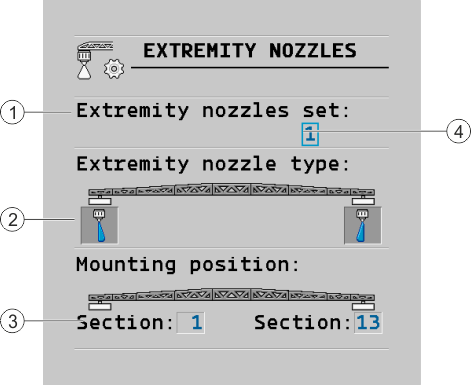

Screen for configuring the extremity nozzles
 1
"Extremity nozzles set" parameter
 4
Currently selected extremity nozzle pair
 2
Extremity nozzles left and right


 3
Installation site for the left and right extremity nozzle




"Extremity nozzles set" parameter
You can define up to three sets of extremity nozzles via the "Extremity nozzles set" parameter. For each set, you can define the installation site and the relevant work screen icon.


Meaning of the icons
Icon
Meaning
No nozzle
Corner nozzle
Wide area nozzle



Procedure



To configure the extrem. nozzles modes:
1.
Call up the screen with the extremity nozzle settings:
 FS_JR3_Einstellungn-Menü >  FS_JR3_Zurück und Weiter >  FS_JR3_Randdüsen-Einstellungen
⇨

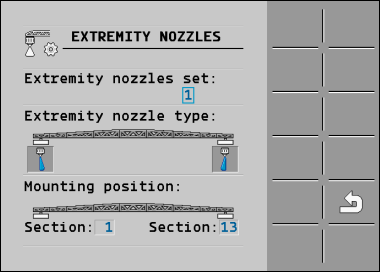

The following screen appears:
 MA_JR3_Randdüsenmodus
2.
On the "Extremity nozzles set" line, enter the set of extremity nozzles for which you want to enter settings. For example "2":
⇨
The saved settings appear on the screen.
3.
Select one of the nozzle icons under the boom icon.
4.
Select the type of extremity nozzle required.
⇨
An alarm message will appear. This message informs you that the job computer must be restarted so that the changes can be applied. Do not restart the job computer yet; wait until you have entered all the settings.
5.
In the "Installation site" area, enter the section on which the extremity nozzles are installed.
6.
Restart the job computer.
