Filling up the tank with TANK-Control and fill stop

If a TANK-Control with fill stop has been installed and configured on the field sprayer, you can use it. It will stop tank filling automatically when a specified fill level is reached.

You can define up to two refill limits for tank filling. The system stops filling the tank when the tank content reaches these refill limits.

Function icon	Function	Effects
	Open ball valve for tank filling	- Ball valve opens. - The following icon will appear on the screen: - Water is being pumped. - Current tank content changes slowly.
	Close ball valve for tank filling	- Ball valve closes.
	Change active refill limit	Only the refill limit selected is taken into account while filling the tank. The tank is filled until the fill level is reached.

Procedure

To fill the tank with two refilling limits:

þ: TANK-Control with fill stop is installed on the field sprayer.

1.: Switch to the "Tank filling - TANK-Control" screen:

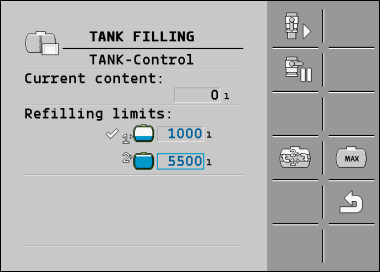

⇨: The following screen appears:

2.: For Refilling limit 1 and 2, you can enter up to two fill levels at which the filling pump should be stopped or the filling ball valve should be closed.

⇨: If you enter two refilling limits, a new function icon appears on the screen:

⇨: Press the icon to mark a refilling limit at which the pump should be stopped.

3.: - Open the ball valve.

⇨: The icon will appear.

⇨: Filling starts.

⇨: When the fill level defined as refilling limit 1 is reached, the ball valve closes and filling is terminated.

⇨: If there is a second refilling limit, it will be automatically activated.

4.: You can now add the spray agent and stir the tank contents.

5.: Prepare the field sprayer for the second filling.

6.: - Open the ball valve.

⇨: Filling starts.

⇨: When the fill level defined as refilling limit 2 is reached, the ball valve closes and filling is terminated.
