On the "Tractor" screen, you can configure the following sensors:

▪: Work position sensor

▪: Speed sensor

Controls

	Back to the previous screen.
	To the next screen in the screen group.
	Calls up the screen on which the speed sensor can be calibrated.

Parameters in the screen group

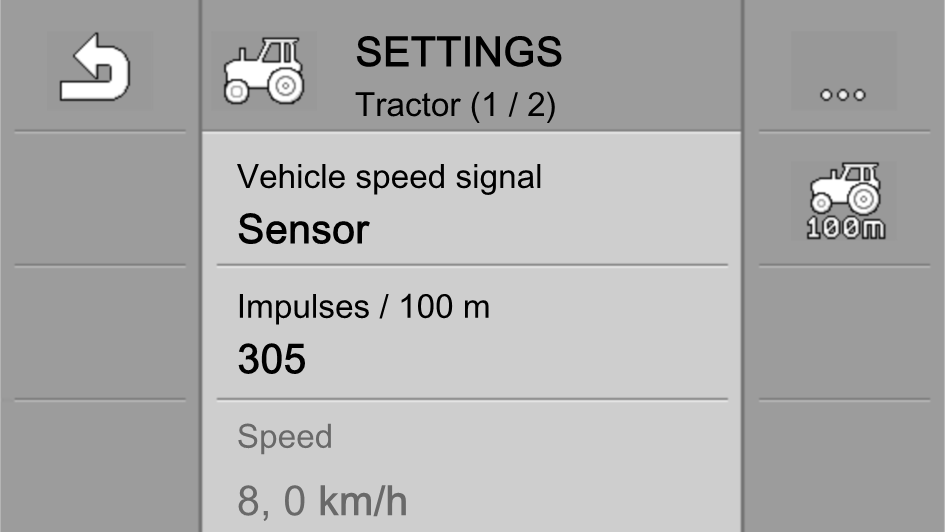

Vehicle speed signal	Source for the speed signal: Sensor - Connected to port B on the terminal. CAN-Bus - Is received through the CAN Bus.
Impulses / 100 m	Number of pulses sent by the speed sensor over a distance of 100m. (Only appears if you select "Sensor" as the speed signal.)
Speed	Display of the current speed.

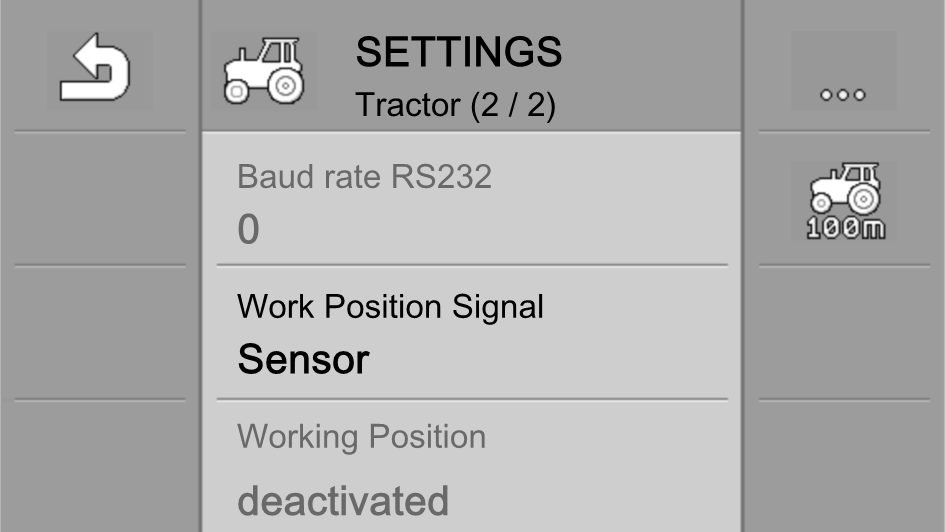

Baud rate RS232	Currently without function.
Work Position Signal	Source for the work position signal: Sensor - Connected to port B on the terminal. CAN-Bus - Is received through the CAN Bus.
Working Position	Current working position: activated - Implement in working position On the "Overview" screen, the following icon appears in this case: deactivated - Implement not in working position

Further information

•: Calibrating the speed sensor
