Mounting the terminal in the vehicle cab

Lieferumfang

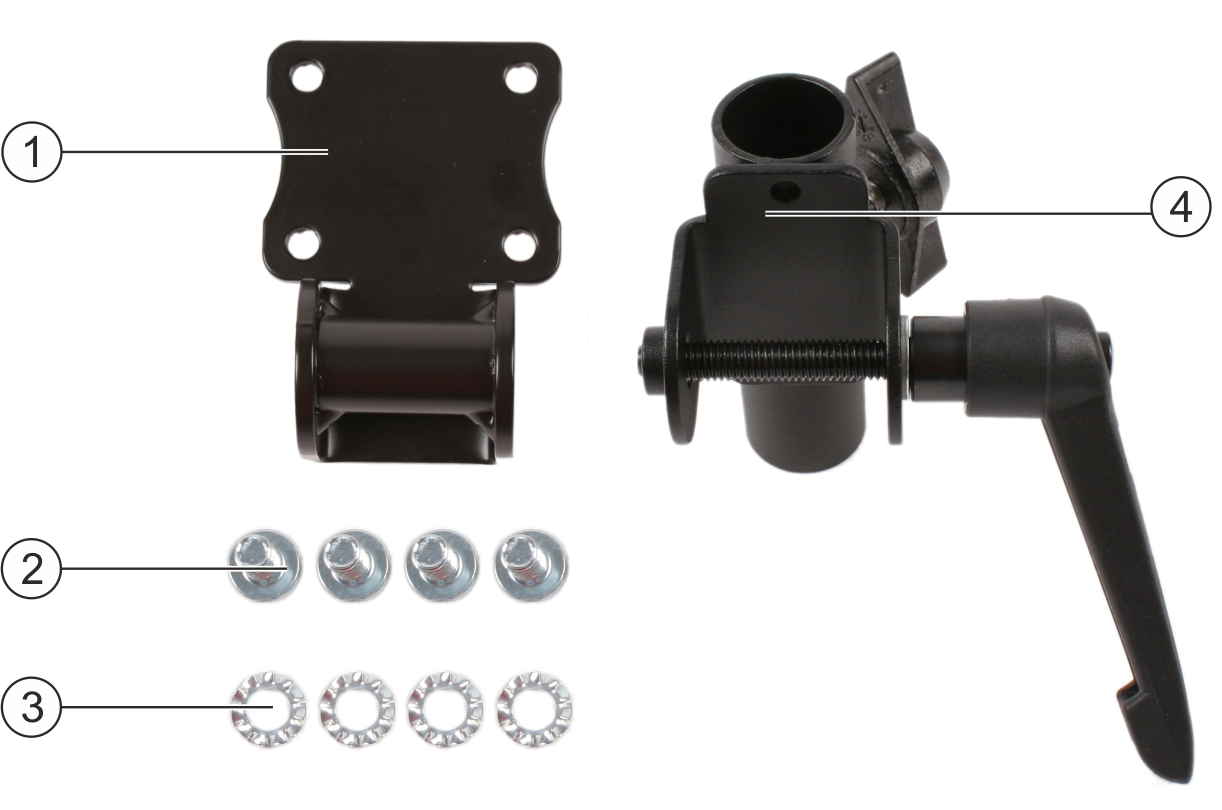

Supplied installation accessories

	Terminal plate		Pipe bracket
	M5 bolt x10
	Washer 5.3x10

Procedure

1.: Screw the terminal plate onto the rear of the terminal:

2.: NOTICE! Make sure that the holes on the pressure compensation membrane are not covered. If the pressure compensation membrane is covered, the terminal can be damaged by condensation water.

⇨

3.: Unscrew the long bolt out of the pipe bracket:

4.: Attach the two bracket components together:

5.: Insert the long bolt through the assembled bracket.

6.: Screw in the long bolt until the terminal is firmly attached.

7.: You can now attach the terminal with the bracket on a round pipe (e.g. on the ME mounting bracket):
