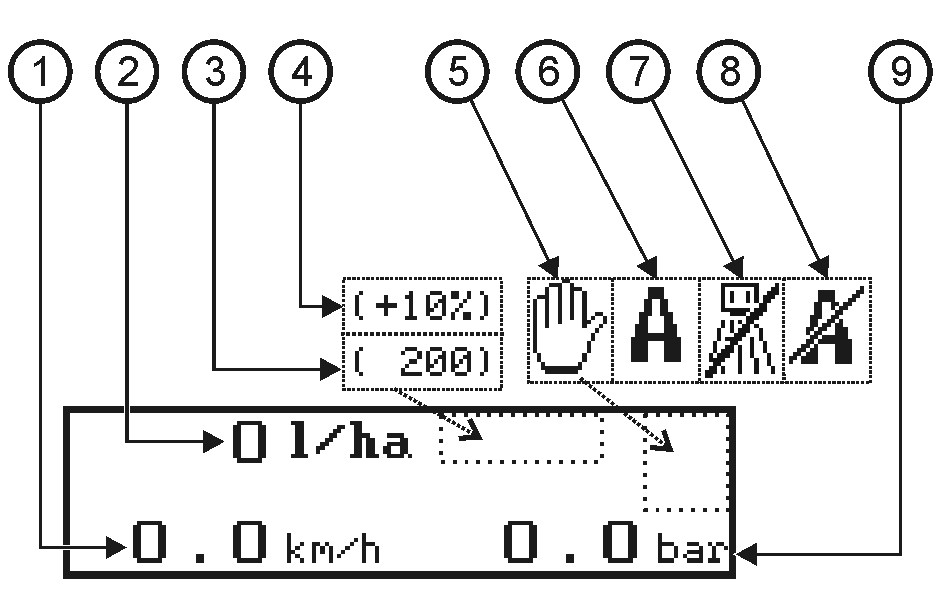

Speed
Current sprayer speed in km/h.

Automatic mode
Automatic mode is switched on.

Current value
Current application rate in l/ha.

Sprayer off icon
If this icon appears on the display, then a set value of 0 l/ha has been input, or the minimum working speed has been undercut.

Set value
Preset application rate in l/ha.

Automatic mode off icon
When this icon appears on the display, the current speed is lower than the Auto.speed and higher than the Min.Speed.

Percentage adjustment of the set value
The set value can be adjusted in Automatic mode in 10% increments. The percentage figure is displayed approx. 2 seconds following the adjustment.

Spray pressure
Current pressure of the sprayed liquid in bar (only when the pressure sensor is configured).

Manual mode
Manual mode is switched on. The spray pressure must be adjusted manually.
