Mounting and installationInstalling the wheel sensorMounting the wheel sensor on the drive shaft


Mounting the wheel sensor on the drive shaft

WARNING
Rotating machine parts
Risk of drawing-in and crushing injuries
1.
Switch off the motor before mounting the wheel sensor!
2.
Ensure that no one starts the motor while you are mounting the wheel sensor!

The wheel sensor should be mounted on the drive shaft in the following instances:
▪
On a mounted sprayer and tractor with all-wheel drive.
 Radsensor an der Kardanwelle montieren

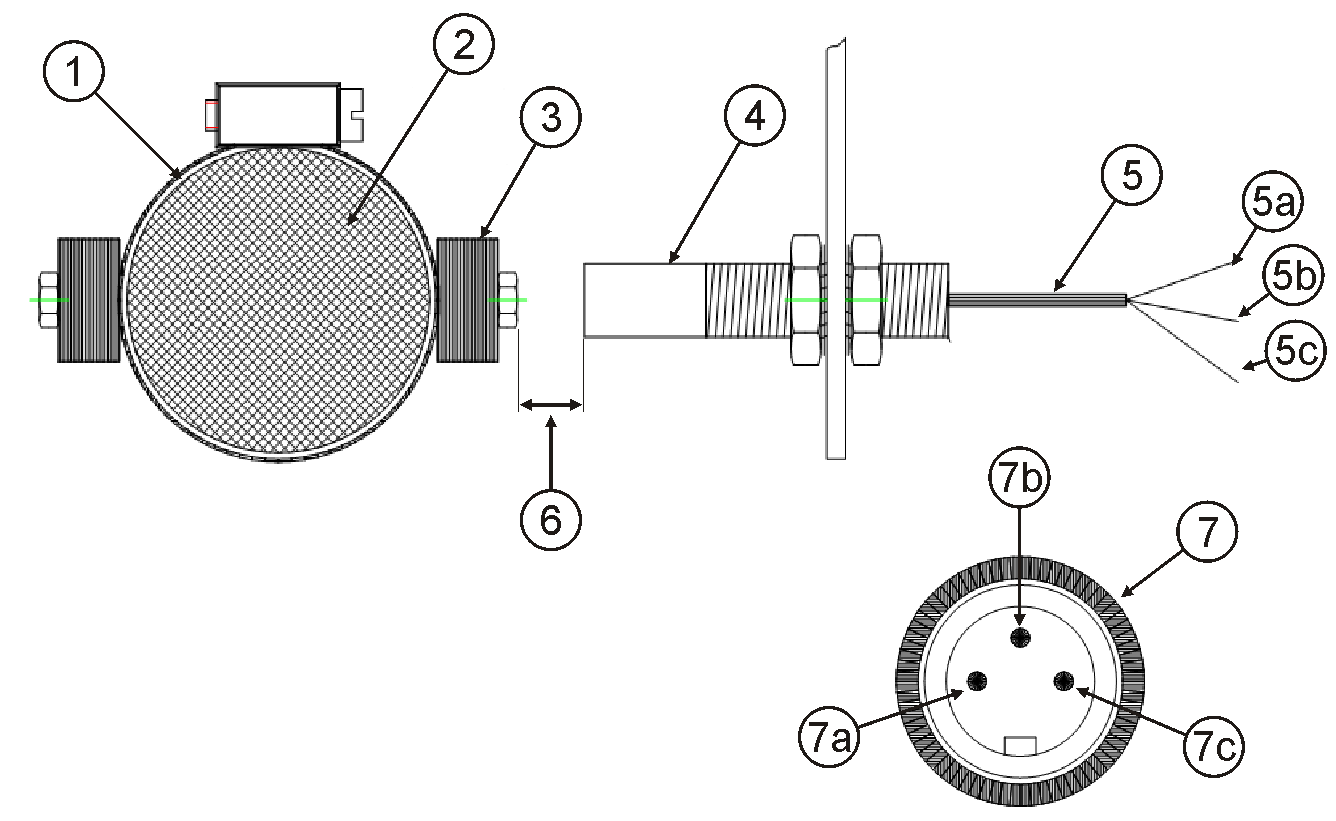

Mounting the wheel sensor on the drive shaft
Hose clamp with magnets
There can be one or two magnets, depending on the design.
Green color: Wheel
Drive shaft
Switching distance
5 to 10 mm
Magnet with a red cap
Mount in an anti-magnetic manner.
3-pole pin – pin assignment
(plug is optional)
Wheel sensor with a blue cap
White color: Ground
Cable to 3-pole plug
Brown color: +12 Volt
White color: Ground
Green color: Wheel
Brown color: +12 Volt




Procedure


1.
Mount the hose clamp with magnet on the drive shaft.
2.
Mount the sensor such that it is vibration-free.
3.
The sensor must point towards the magnets at a distance of 5 - 10 mm.
The following illustration shows the position of the sensor and the hose clamp:
 Radsensor an der Kardanwelle 2

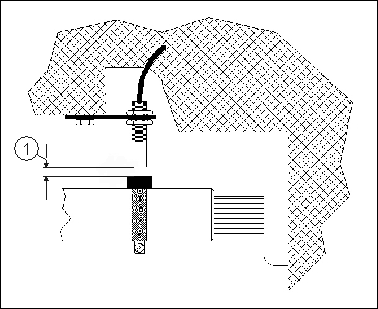

Position of the wheel sensor on the drive shaft
The distance between the sensor and the magnets must be between 5 and10 mm.
