Determining pulses per 100 meters
When calibrating the wheel sensor with the 100m method, you determine the number of pulses received by the sensor over a distance of 100 meters.
To make sure that the wheel sensor functions correctly, at least 185 pulses must be received every 100 meters.
When the number of pulses is known, Spraylight can calculate the actual speed.
Preconditions
- þ
- Wheel sensor is mounted.
- þ
- All wheel sensor magnets are fully functional.
- þ
- A distance of 100m has been measured and marked. The distance must correspond to the field conditions. It should therefore lead over a meadow or a field.
- þ
- The tractor with connected machine is ready for a 100m drive and is at the start of the marked distance.

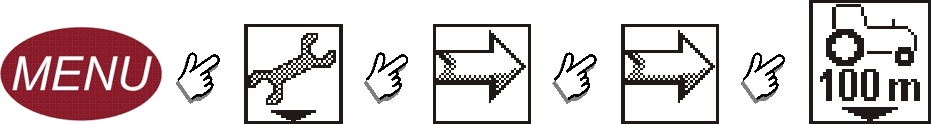

- 1.
- Make sure that all preconditions are fulfilled!
- Start calibration.
- Stop calibration.
- Abort calibration.- 5.
- Drive the previously measured 100m distance and stop at the end.
- ⇨
- During the drive, the currently determined pulses are displayed.
- Exit the screen.- ⇨
- You have calibrated the wheel sensor.
