V24 interface
The V24 interface serve to establish the communication between Spraylight and a connected device.
One of the following parameters can be activated on the V24 screen:
- ▪
- SW update: Setting for software updates with the DataBox 2
- ▪
- Hardcopy: here, Müller-Elektronik can load data from Spraylight.
- ▪
- LH5000: The set value is accepted by the LH5000 and the currently applied amount is restored.
- ▪
- ASD: If this parameter is activated, Spraylight can communicate with an ME terminal through the serial interface. You can find more information on this in the description of the serial interface in the terminal operating instructions. In this way, the following functions are possible:
- –
- Section control via SECTION-Control
- –
- Target rate import from a prescription map
- ▪
- ASD SC: If this parameter is activated, Spraylight can communicate with an ME terminal through the serial interface. In this way, the following functions are possible:
- –
- Section control via SECTION-Control

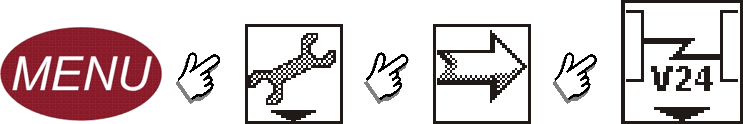

Procedure
