Connecting the camera NQ

Kamera NQ - Anschluss an Touch1200 - 3030249400

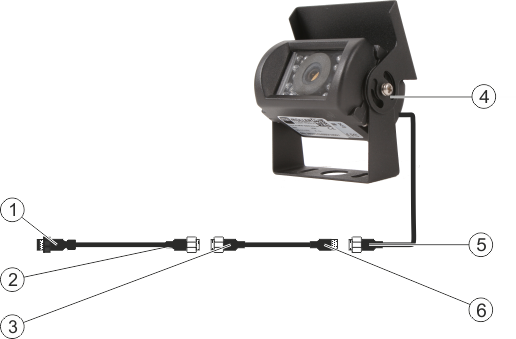

Camera with adapter cable

	Connector for connection to the terminal. CAM port		Camera
	Connector for the adapter cable		Camera connector
	Connector for the extension cable		Connector for the camera plug

Procedure

1.: Connect the cables to each other as shown in the figure. Pay attention to cable lengths when doing so.

2.: CAUTION! When laying out the cable, ensure that there are no kinks in the cable and that no one can stumble over the laid-out cable.

3.: Lay out the cable. Ensure that the cable reaches the terminal and is not pulled out during operation.

4.: Attach the cable with the provided cable ties.

5.: Secure the camera. Use the white cardboard drilling template from the quick start guide for this purpose.

6.: Connect the camera to the terminal. Use the CAM port to do this.

7.: Activate the camera.

8.: When disconnecting the cable from the terminal, use the enclosed rubber gasket to seal the exposed connector.
