Mounting and installationMounting the terminal in the vehicle cabMounting the optional bracket


Mounting the optional bracket


Procedure



þ
You have the bracket assembly kit within reach.
1.
Assemble the bracket together.

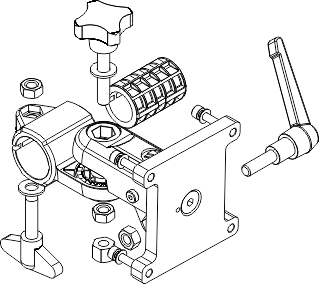

 Halter_VESA-07_Explosionsansicht
2.
Secure the bracket with the four screws on the back side of the terminal.
3.
Put the bracket into the desired position. For example:
 800
4.
Secure the terminal in the vehicle cab. You can, for example, use the ME mounting bracket for this purpose. It is included in the scope of delivery of the ISOBUS basic vehicle harness.
 Grundkonsole
5.
Check that your terminal is firmly mounted.
