Basic control principlesTerminal screen layout

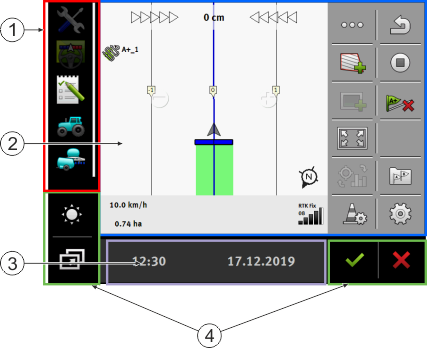

Terminal screen layout


 Bereiche des Bildschirms_Touch800_metrisch
Terminal screen layout
Selection menu
You can open applications in the “Selection Menu” area.
Wide additional window
▪
You can move the TRACK-Leader app into this window and use it as a Lightbar.
▪
In this area, ISOBUS job computers made by Müller-Elektronik can display a summary of information on the status of the agricultural implement.
Main window
This area enables you to operate applications. Touching the terminal screen in the “Main window” area will actuate the function whose icon you have touched.
The controls depend on the opened applications.
System icons


System icons
Icon
Meaning
Changes the brightness for day and night.
Changes the arrangement of the applications in the windows.
Has no function in this area.
When this icon appears in other areas, it is used for confirmation purposes.
Has no function in this area.
When this icon appears in other areas, it is used for cancellation or deletion purposes.
