Parameter

Name

Name of the virtual job computer.

External Controller

If you have connected an on-board integrated display/controller or crop protection sensor to the serial interface, you must select the model in this parameter.

The list contains the following devices:

▪: On-board integrated display/controllers that can communicate using one of the protocols ASD or LH5000 and are capable of communicating with the terminal. If you want to connect an on-board integrated display/controller that supports this protocol, but does not appear in the list, please contact Müller-Elektronik and perform the steps shown at the end of this section.

▪: Crop protection sensors that can be connected to the serial interface of the terminal.

▪: AMABUS. Please note that to connect the AMABUS, you need a special cable, item number: 30322572

Procedure

This is how you update the list of on-board integrated display/controllers:

þ: You have contacted Müller-Elektronik and received a USB memory device with the installation file.

þ: The Virtual ECU application is closed.

1.: Insert the USB memory device into the terminal.

2.: Start the Virtual ECU application.

⇨: The following message appears: Do you want to update the list of external on-board integrated display/controllers?

3.: Select “Yes” to update the list.

4.: Confirm.

5.: Restart the terminal.

⇨: You can now also select the added on-board integrated display/controller.

Implement type

Use this parameter to define the type of implement.

The following implement types are available:

▪: Seeder

▪: Fertilizer spreader

▪: Sprayer

▪: Soil tillage

Connector type

Use this parameter to define the connector type of the agricultural implement.

The following connector types are possible:

▪: Unknown

▪: Drawbar

▪: 3-point hitch mounted

▪: 3-point hitch semi-mounted

▪: Hitch hook

▪: Clevis coupling

▪: Piton-type coupling

▪: CUNA hitch

▪: Ball-type hitch

Machine model

This parameter influences how the working bar follows the arrow in TRACK-Leader. The configuration improves the precision of the recording of applied areas in curves.

After each change, you also need to adjust the geometry.

Possible values:

▪: “mounted”

: Setting for implements that are mounted on the tractor three-point hitch.

▪: “trailed”

: Settings for implements trailed by a tractor. The working bar is guided like a trailer behind a tractor.

Working width

This parameter shows the working width set for an implement.

Number of sections

Enter the number of sections that can be switched off on the implement. On a field sprayer, they are the section valves; on a fertilizer spreader or a planter/seeder, they can be e.g. metering units.

This parameter serves to transmit the proper number of sections to the SECTION-View module, so that you can switch the sections manually.

Each section appears as part of the working bar on the screen.

Sections

Opens a screen where you can enter the width of the individual sections on the implement.

Geometry

The geometry contains a series of dimensions that help to properly display the vehicle-implement combination in TRACK-Leader and determine its position.

To call up the geometry, tap the function icon:

Calls up the machine geometry.

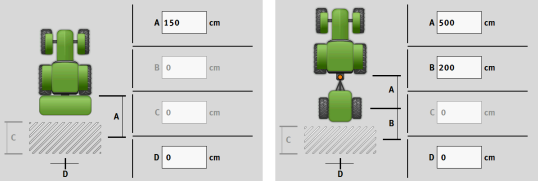

Screen for entering the geometry for different machine models

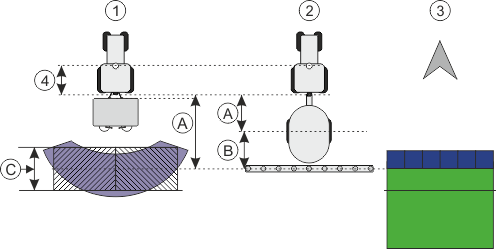

A	Mounted: Distance between the coupling point and the work point of the machine. Trailed: Distance between the coupling point and the pivot point of the machine. For single-axle trailers, the pivot point is located at the centre of the axle, for tandem trailers between two axles. For planters/seeders, cultivators and other soil tillage implements, the pivot point must be determined individually.
B	Mounted: Not available Trailed: Distance between the pivot point of the machine and the work point.
C	Only for spreaders: Working Length
D	Lateral offset If the mounted implement is offset to the left in the direction of travel, enter a negative value. For example: - 50 cm.
