Technical specifications
Pin-out diagrams
CAM port
CAM port

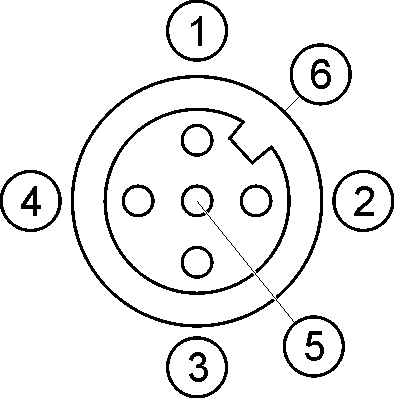

M12 socket: Camera
Pin
Signal name
Function
1
Power
Voltage supply, max. 250 mA total
2
Power GND
Supply ground
3
FBAS2
Camera
4
FBAS
Camera
5
Signal GND
Signal ground
6
Electromagnetic shielding
ESD/EMV shielding
