Creating new prescription map formats
You need to create a new format when importing a prescription map with a structure not recognized by the software.
The formats will be stored directly in internal storage of the terminal. You have to create them separately for each terminal.

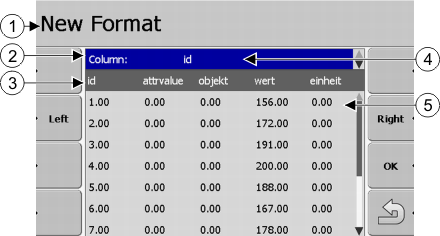

Screen "New Format"
 1
Screen name
 4
Denotation of selected column
 2
Box for column selection
 5
Data in the table
Data come from the shp file
 3
Table headlines
Column headlines are defined when creating the prescription map with the PC software.





Controls


Control element
Function
 Drehrad drehen
Select column name
Left
Scroll to the left if the table is bigger than the screen.
Right
Scroll to the right if the table is bigger than the screen.
OK
Confirm your choice


Procedure



This is how you create a new format for the prescription map.
þ
You have chosen a prescription map.
þ
The "Choose format" screen has been called up.
1.
Press "New".
⇨
The following screen will appear: "New Format"
2.
 Drehrad drehen In the "Column" line, choose the denotation of the column containing required values.
3.
Press "OK“ to confirm the choice.
⇨
The following screen will appear: "Format name"
4.
Enter the name of the new format.
⇨
The following screen will appear: "Unit"
5.
Choose the unit containing the values in the prescription map.
6.
Press "OK".
⇨
The following screen will appear: "Choose format".
⇨
The name of the new format appears in line "Format".
7.
Press "OK".
⇨
The prescription map will be loaded. This process can take a bit longer if the prescription map is large.
⇨
The following screen will appear: "Prescription maps"
