Straight guidance lines
Procedure
- 1.

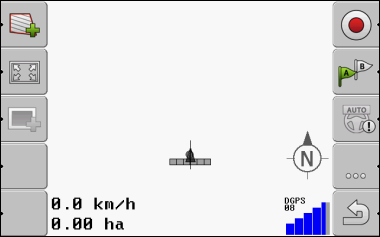

- Position the vehicle at the starting point of the desired AB line.
- Set the first point.- ⇨
- Point A appears on the terminal screen.
- ⇨
- The first flag is colored green on the function icon.
- 3.
- Drive to the other side of the field.
- Set the second point.- ⇨
- Point B appears on the terminal screen.
- ⇨
- The second flag is colored green on the function icon.
- ⇨

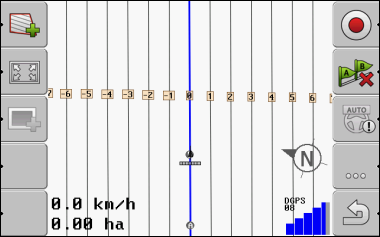

- Points A and B are connected with a straight line. This is the AB line.
- ⇨
- Further guidance lines are displayed to the left and right of the AB line.
