Configuring TRACK-Leader

Guidance line numbering
This parameter determines whether and how the implemented guidance lines are numbered.

Possible values:

▪
"absolute"

The guidance lines have fixed numbers. The AB line contains the number 0. The guidance lines to the left and right of the AB line will be numbered.
▪
"relative"

The guidance lines are re-numbered each time that the vehicle activates a new guidance line. The activated guidance line always has the number 0.


Pattern interval mode

If you are using the "Pattern interval" function, you can set whether the marking of the guidance lines to be applied should change during work.



Possible settings



▪
"Absolute" – the initially marked guidance lines always remain marked, even if you are following a different guidance line that is not marked:

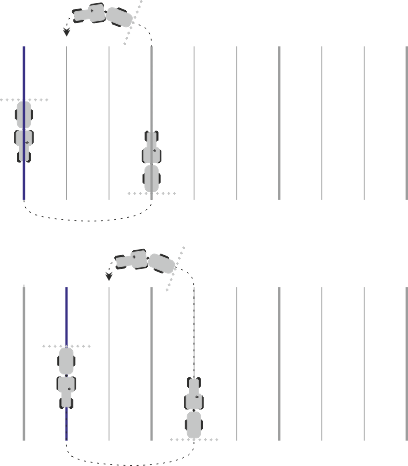

 Beete-Modus - absolut


▪
"Relative" – with this setting, all of the markings are shifted as soon as you follow a line that was not previously marked:

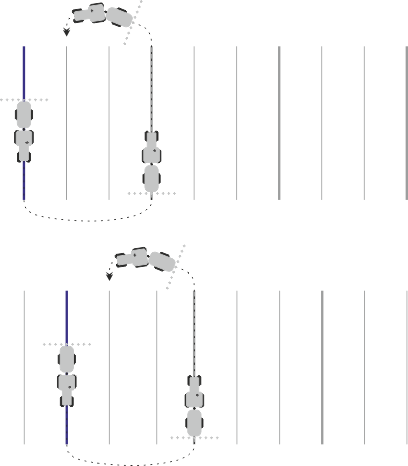

 Beete-Modus - relativ



Sensitivity
Sets the sensitivity of the lightbar.
How many centimeters of deviation are required for a LED to light on the lightbar?
▪
Default value: 30cm

This value means a sensitivity of 15cm to the left and 15 cm to the right.


Preview
This parameter determines the number of meter in front of the vehicle at which the preview display of the screen lightbar will calculate the future position of the vehicle.
▪
Default value: 8m



Line acquisition angle
With this parameter, you can determine the angle up to which the system activates a guidance line. If the angle between the vehicle and the guidance line is smaller than the set value, the guidance line will be activated. If the angle is larger, the guidance line will be ignored.


 Einschwenkwinkel

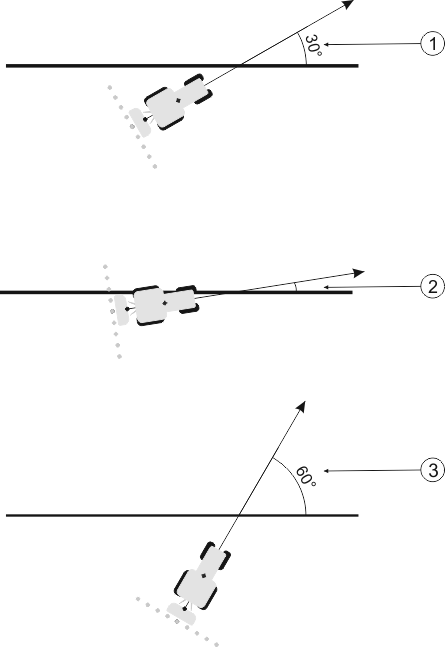

Terminal response for a set line acquisition angle of 30°
 1
Angle between the vehicle and the guidance line = 30°
The guidance line will be activated.

Angle between the vehicle and the guidance line = 60°
The guidance line will not be activated.
 2
Angle between the vehicle and the guidance line smaller than 30°
The guidance line will be activated.




▪
Default value: 30 degrees


▪
Value for TRACK-Leader TOP: 85 degrees



Dist. contour points
Points are continuously saved when recording the AB line in contour mode. The more the points, the more precise the drawn guidance line. This does however slow down the operation of the terminal.
The parameter defines the distance between the points. The optimal value can differ per field, and per vehicle.
▪
Default: 500 cm
