Multiple guidance lines

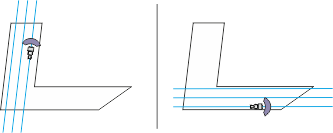

If you need to change the direction of treatment several times in the field, you can lay out up to five AB lines.
Procedure
- þ
- "Multi smoothed contours" or "Multi A-B" guidance mode is activated.
- 1.
- Lay out the first AB line. Make sure that the function icons which you are using for this purpose are labeled with a number between 1 and 5. This is the number of the guidance line set.
- 2.
- Apply the product to the field along these guidance lines.
- 3.
- Change the guidance line set. The number of the next guidance line set is always shown on the function icon.
- ⇨
- All guidance lines disappear.
- ⇨
- A new number appears on the function icons.
- 4.
- - Now lay out a new AB line in any direction.
- 5.
- Apply the product to the field along these guidance lines.
- 6.
- If you press the function button again, the number on the function icon will be increased and you will be able to lay out a new AB line. If you do not lay out a new AB line, the existing AB lines will be displayed consecutively.
