ConfigurationConfiguring TRACK-Leader TOP


Configuring TRACK-Leader TOP

Sensitivity
Sets the sensitivity of the lightbar.
How many centimeters of deviation are required for a LED to light on the lightbar?
▪
Default value: 30 cm

This value means a sensitivity of 15 cm to the left and 15 cm to the right.


Preview
This parameter determines the number of meter in front of the vehicle at which the preview display of the screen lightbar will calculate the future position of the vehicle.
▪
Default value: 8 m



Line acquisition angle
With this parameter, you can determine the angle up to which the system activates a guidance line. If the angle between the vehicle and the guidance line is smaller than the set value, the guidance line will be activated. If the angle is larger, the guidance line will be ignored.

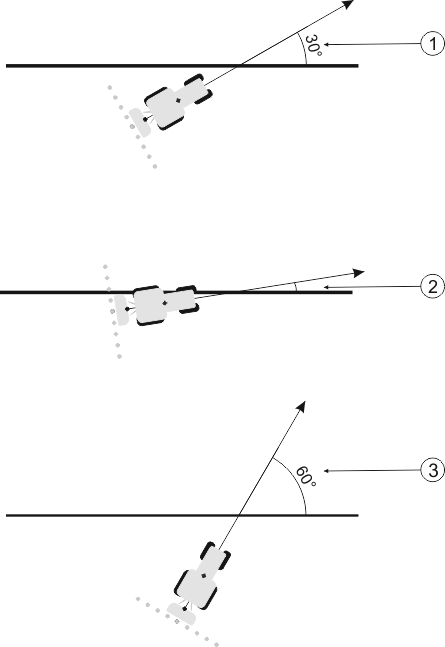

 Einschwenkwinkel
Terminal response for a set line acquisition angle of 30°
Angle between the vehicle and the guidance line = 30°
The guidance line will be activated.
Angle between the vehicle and the guidance line = 60°
The guidance line will not be activated.
Angle between the vehicle and the guidance line smaller than 30°
The guidance line will be activated.




▪
Default value: 30 degrees


▪
Value for TRACK-Leader TOP: 85 degrees


▪
Value for TRACK-Leader AUTO: 65 degrees
If you use TRACK-Leader AUTO with a NAV-900, the line acquisition angle also depends on the license used.
