Spray data area

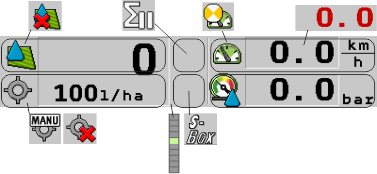

The following information is shown in this area:
Icons
Depending on the configuration, the following icons may appear:
Icon | Meaning |
The application rate will be automatically regulated. The current value (current application rate) appears next to it. | |
No flow. The main valve cannot be opened because one of the requirements has not been fulfilled: - Speed slower than "Sprayer off below" - Section status - Set rate out of reach. - SECTION-Control has terminated the application | |
The application rate will be automatically regulated. The target rate appears next to it. See: Using Automatic mode | |
The application rate will be manually regulated. | |
The bar graph only appears when the target rate is changed in automatic mode using the +10% and -10% buttons. It shows the deviation from the original target rate. | |
Automatic mode is deactivated. The flow will not be regulated. The current speed is lower than the "Regulation off below" parameter and higher than "Sprayer off below" | |
The target rate is defined by an external source: Task Controller, prescription map, external sensor etc. See: Setting the target rate | |
- A problem has occurred with the transmission of the target rate from an external source. - The field sprayer is outside of the area defined in the prescription map or in an area that should not be sprayed. | |
The sprayer functions will be switched on and off through an "S-Box". | |
Trip counter is deactivated | |
Speed If the numbers are red, it means that the regulation or the application have been interrupted because the speed is too low. | |
The speed signal from the tractor / ISOBUS cannot be adopted. The system will now determine the speed using the sensor connected to the junction box. Ensure that the number of impulses per 100m is correctly entered. The icon can only appear if the signal source was automatically selected. | |
The vehicle is driving in reverse. | |
Pressure |
/
