Mounting and installationSystem OverviewMain system - MAXI


Main system - MAXI

The system can be expanded. In the basic version, it consists of a job computer that is connected to the junction box and the ISOBUS power socket of the tractor.
 Hauptsystem_V2

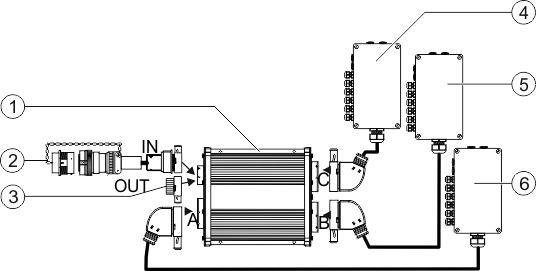

Main system - Version MAXI 3.0
ISOBUS job computer SPRAYER-Controller MAXI 3.0
30303187
Connector cable for job computer to ISOBUS
Connection to ISOBUS power socket
Cable length - Item number:
1m - 3030314301
2.5m - 3030314601
4m - 3030314401
5.5m - 3030314801
6.5m - 3030314001
8.5m - 3030314201
11m - 3030314101
14m - 3030314701
Water and dust protection cap.
Otherwise, connection of extensions.

Junction box C
Depending on the field sprayer model
Junction box B
Depending on the field sprayer model
Junction box A
Depending on the field sprayer model
Extensions

The system can be expanded with other components. For each extension, another job computer with cable harness and junction box is connected to the main system. The system overviews are given in the following sections.
