Mounting and installationSystem Overview


System Overview

Depending on which job computer is used as the base computer for the main system, and which additional components are installed, the overall system can have different sizes.

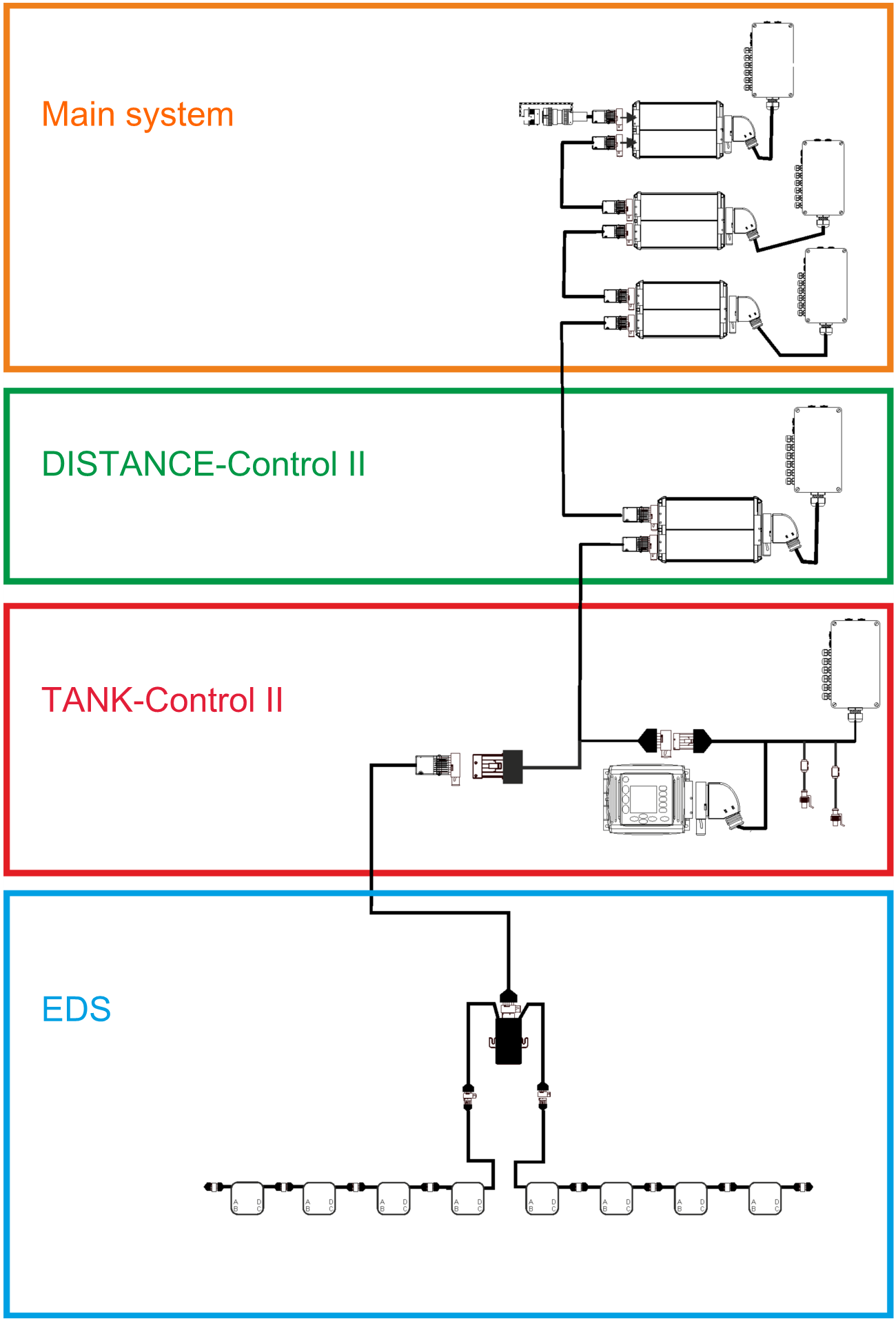

 Example: MAXI 3.0 general overview
Example: MAXI 3.0 as the main job computer

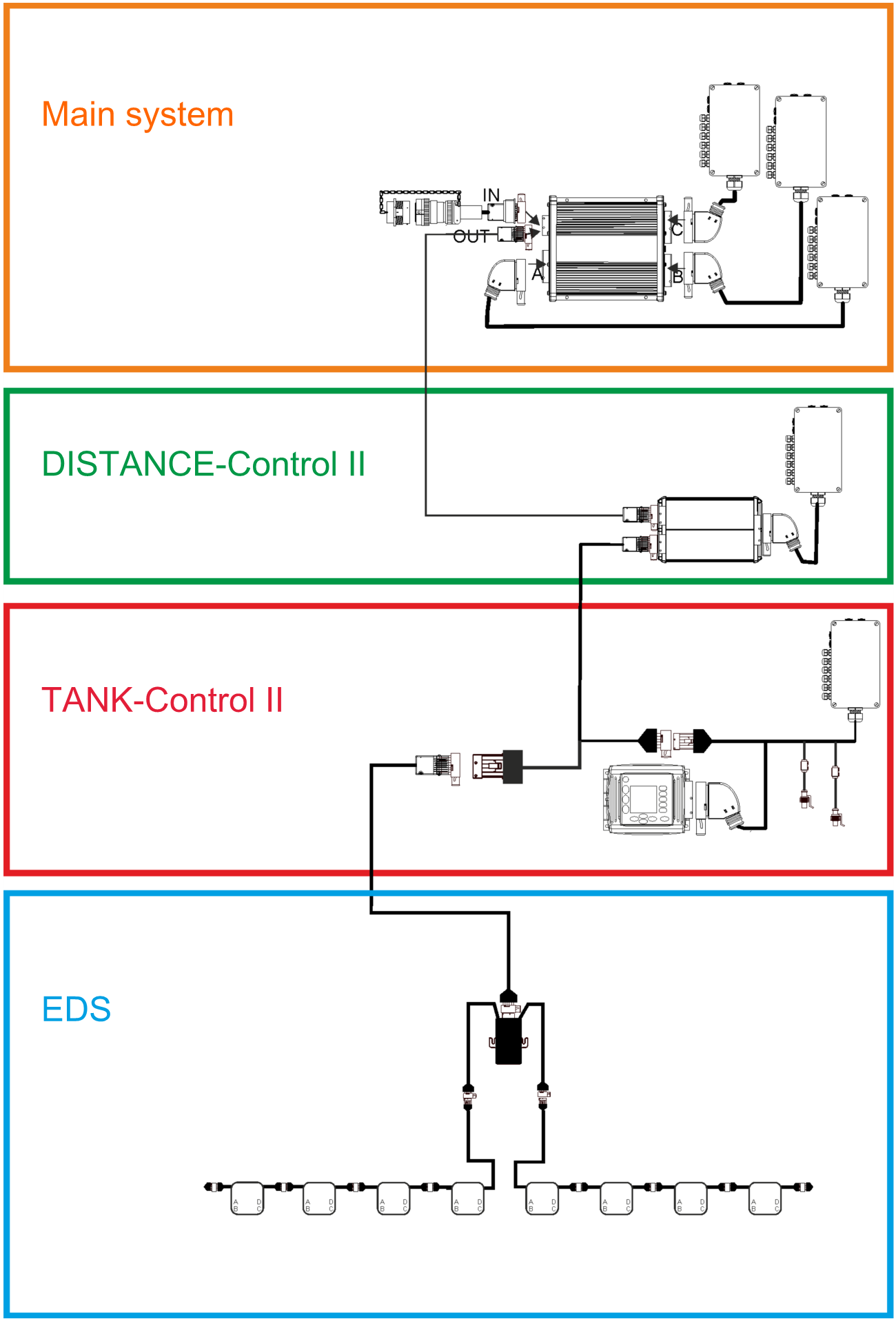

 Example: MIDI 3.0 general overview
Example: MIDI 3.0 as the main job computer

Further information
•
Main system - MAXI
•
Main system - MIDI
•
Extension: DISTANCE-Control II
•
Extension: TANK-Control II
•
Extension: EDS
