The system can be expanded. The basic version consists of one to three job computers. The first job computer is connected to the ISOBUS power socket on the tractor.

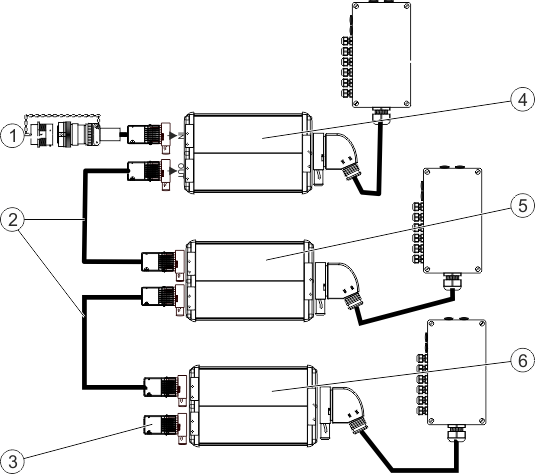

Main system of the MIDI 3.0 version
| Connector cable for job computer to ISOBUS Connection to ISOBUS power socket | Cable length - Item number: |
1m - 3030314301 2.5m - 3030314601 4m - 3030314401 5.5m - 3030314801 | 6.5m - 3030314001 8.5m - 3030314201 11m - 3030314101 14m - 3030314701 |
| | 0.3m - 30322355 1.5m - 30322359 3.2m - 30322358 4m - 3032235801 | 6.5m - 30322357 8m - 3032235802 10m - 30322356 14m - 3032235803 |
| Water and dust protection cap or terminating resistor. Otherwise, connection of extensions. | 31300581 - Terminating resistor is supplied with the master job computer and must not be ordered separately. |
| | |
| | |
| | 30322456 Slave job computers differ in terms of the software and configuration. The hardware is the same. |
Cabling concept
To prevent voltage drops, always install the job computers close to their power consumers (especially the actuators).
