Diagnostic of connected devices

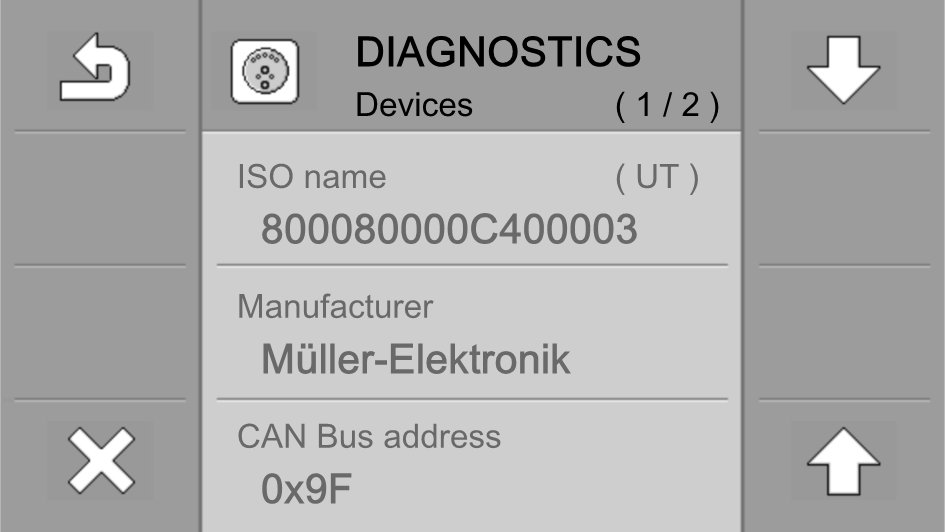

On the "Devices" screen, you can find some detailed information on all of the devices connected to the bus.



Path



On the start screen, press the following keys successively:


 Setting_64x48 >  Diagnostics_64x48 >  ISO_64x48




Controls


 Down_64x48
Next device.
 Up_64x48
Previous device.
 Delete_64x48
This key deletes the object pool for the displayed job computer. This job computer must also be connected.
 Cancel_64x48
This key only appears for object pools that cannot be deleted:
(UT), (TECU) - Two object pools for the terminal
