Using the joystick

If an AUX-2 operating device (e.g.: joystick) is detected, an overview of the configured button assignment is shown every time the terminal is started.

The terminal enables the use of max. one external AUX-2 operating device.

		CAUTION
	Operating errors because there are too many operating devices If signals from more than one AUX-2 operating device are sent to the ISOBUS, they cannot be clearly assigned. In this case, the wrong function can be triggered when a button is pressed, which can result in accidents. 1. Make sure that only one AUX-2 operating device is communicating through the ISOBUS.

Procedure

þ: You have started the terminal.

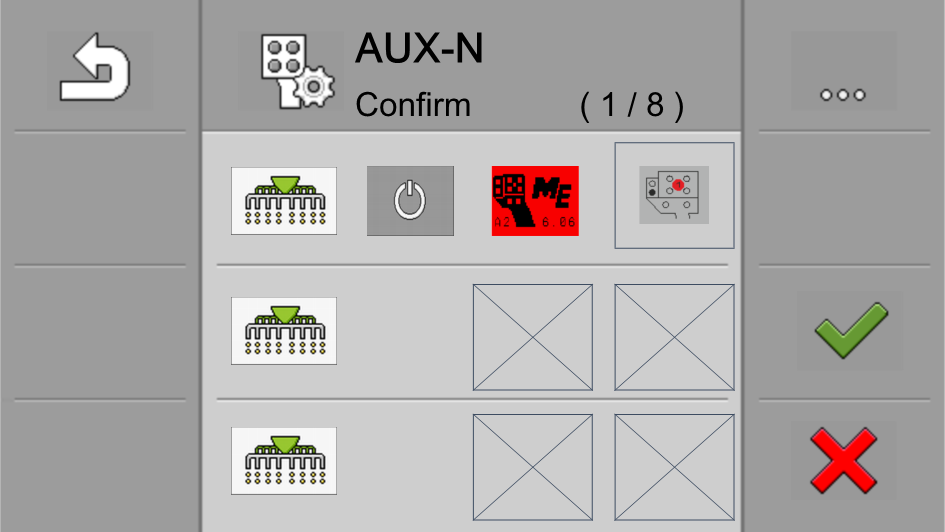

þ: You see the "AUX-N Confirm" menu:

1.: Before you continue working, check if the button assignment is correct. More about this in section: Key assignment for AUX operating devices

2.: Possibility 1: To adopt the button assignment, press .

3.: Possibility 2: To reject the button assignment, press .

⇨: You will then be requested to confirm that the button assignment should be rejected.

4.: To do so, press .

⇨: In this case, the button assignment will be deleted.

You will then also be requested to confirm when the table with the button assignments is empty. For example, after a new job computer is connected, before the joystick buttons are assigned with new functions.

In this case:

1.: - Confirm that the table with the button assignments is empty.
