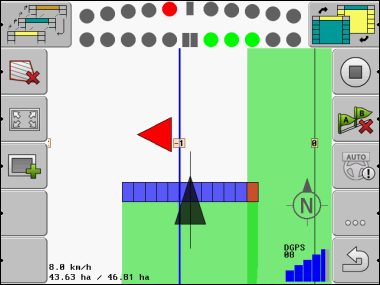

The screen light bar in graphic mode
The screen light bar in graphic mode consists of two bars:
- ▪
- The current deviation from the guidance line is displayed in the lower bar.
- ▪
- The deviation is displayed at a specific distance in the upper bar. See the "Preview" parameter.
Each circle indicates a specific deviation in centimeters. See the "Sensitivity" parameter.
As the angle of travel can vary for technical reasons, the sensitivity value is doubled for display in the preview bar.
When steering, the aim should be to ensure that the central squares remain lit.
