Parallel guidance TRACK-LeaderParallel driving with the help of the lightbar and the guidance line


Parallel driving with the help of the lightbar and the guidance line

The display screen lightbar helps you to follow the guidance line. This shows you when you have moved off the track and also once you have returned to the track.


The following types of screen lightbars are available:
▪
The screen lightbar in graphic mode
▪
The screen lightbar in text mode


In addition to the screen lightbar, a direction arrow appears on the screen, which indicates the correct steering direction.

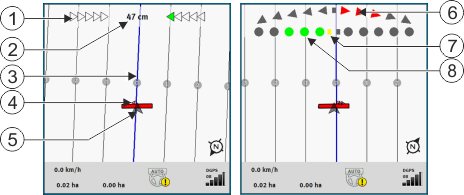

 MMZ_Links: Lightbar im textmodus; Rechts: Lightbar im Grafikmodus
Screen lightbar. left: Text mode; right: Graphic mode
Direction display of the lightbar in text mode.
Triangle
This shows you how sharply and the direction in which you must turn in order to reach the ideal position at a certain distance.
See also the “Preview” parameter .
Current deviation from the guidance line.
Marking of the optimal position
Guidance line
This shows the optimal position of the vehicle.
Current deviation from the guidance line
Each point corresponds to a deviation of 30 cm.
Direction arrow


Position of GPS receiver




To change the lightbar type while working, tap with your finger on the upper area of the screen.
